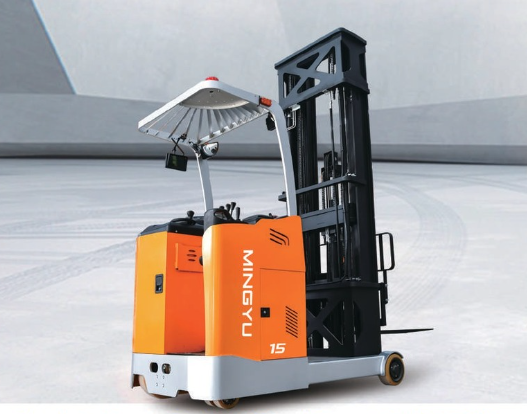

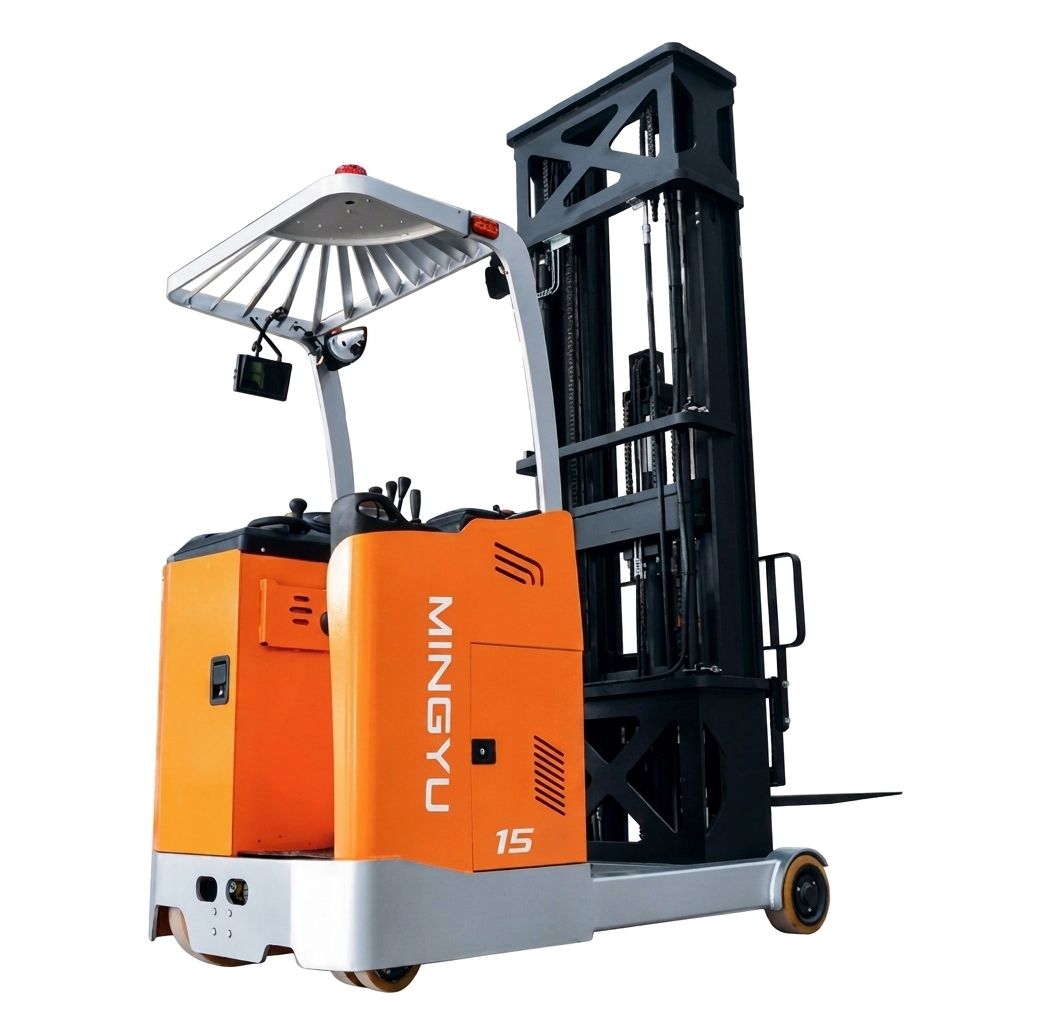

Electric Reach Forklift (Stand Type)
CQD15
Kapasitas Angkut (Kg)
1500
Jarak pusat beban
500
Daya
Baterai lithium
Applicable work conditions
Warehouse
Warehouse
FEATURE
CQD15 Electric Reach Forklift dirancang untuk memberikan performa maksimal dalam penanganan material di gudang bertingkat dan area penyimpanan berkapasitas tinggi.
Dengan teknologi listrik yang ramah lingkungan, manuver yang presisi, dan desain yang kompak, CQD15 menjadi solusi ideal untuk operasional yang lebih efisien, aman, dan produktif.
SPESIFIKASI
| Model No.: CQD15-45S | Fork tilting angle Front/Rear: 3/5° |
|---|---|
| Power type: Electric | Lifting speed (unload): 330 mm/s |
| Load capacity: 1500 kg | Lifting speed (load): 245 mm/s |
| Load center: 500 mm | Max. travel speed (unload): 8 km/h |
| Operation type: Stand Type | Max. travel speed (load): 7 km/h |
| Overall length (with fork): 2400 mm | Max. gradeability: ≤10% |
| Overall length (without fork): 1752 mm | Total weight with battery: 2700 kg |
| Overall width: 1195 mm | Wheel type: Polyurethane PU |
| Fork face min. ground clearance: 2100 mm | Front wheel: 267*114 |
| Free lift height: 1500 mm | Drive wheel: 382*142 |
| Lift height: 4500 mm | Balance wheel: 180*76 |
| Max. height when lifting: 5480 mm | Wheel tread, front wheel: 1081 mm |
| Height of overhead guards: 2280 mm | Brake type: ELEC |
| Wheelbase: 1383 mm | Driving motor: 4.5 kW |
| Reach distance: 500 mm | Lifting motor: 6.3 kW |
| Min. ground clearance: 80 mm | Battery capacity: 48V / 280Ah |
| Min. turning radius: 1680 mm | Charger: 48V / 100A |
