Forklift Offroad
Y35
Kapasitas Angkat (Kg)
3500
Jarak Pusat Beban (mm)
500
Power
Diesel
Applicable work conditions
Warehouse
Warehouse
FEATURE
Offroad Forklift Y35 dilengkapi dengan ground clearance yang tinggi dan ban off-road yang lebar, forklift ini sangat ideal untuk dioperasikan di medan yang lunak, tidak rata, hingga kondisi
cuaca ekstrem seperti musim dingin atau musim hujan yang berlumpur.
Kombinasi ground clearance tinggi serta sudut kemiringan tiang
(mast angle) hingga 10° (Depan) / 12° (Belakang) menjamin kemampuan manuver yang lancar.
SPESIFIKASI
| Power: Diesel | Lift Height: 3000mm |
|---|---|
| Rated lifting capacity: 3500kg | Fork adjustment range: / |
| Load center distance: 500mm | Gantry inclination angle: 10/12° |
| Operation mode: RIDE-ON | Max. lifting speed (no load): 450mm/s |
| Length (With fork): 4455mm | Max. lifting speed (full load): 400mm/s |
| Length (Without fork): 3235mm | Max. operating speed (no load): 30km/h |
| Width: 1590mm | Max. operating speed (full load): 28km/h |
| Height of non-lifting gantry: 2310mm | Max. gradeability (full load): 30% |
| Height of roof guard: 2370mm | Overall weight: 5390kg |
| Max. height during operation: 4310mm | Number of wheels: 2/2 |
| Wheelbase: 1950mm | Tyre: Inflation |
| Front overhang: 565mm | Front Tyre size: 12-16.5 |
| Rear overhang: 715mm | Rear Tyre size: 12-16.5 |
| Front track width: 1260mm | Service Brakes: foot brake |
| Rear track width: 1260mm | Parking Brakes: hand brake |
| Ground clearance: 285mm | Engine Power: 36.8kw |
| Minimum turning radius: 3720mm | Speed: 2500r/min |

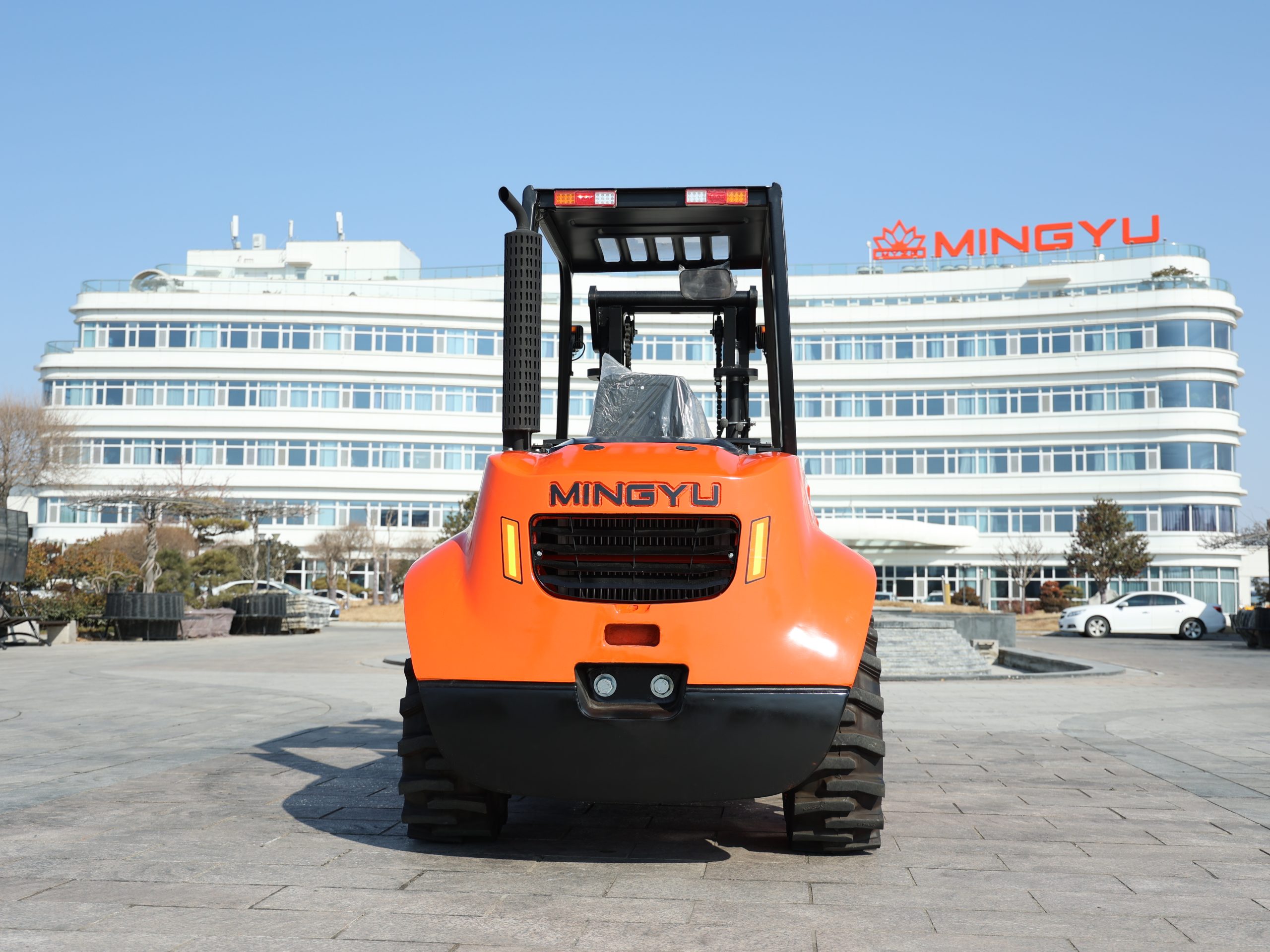

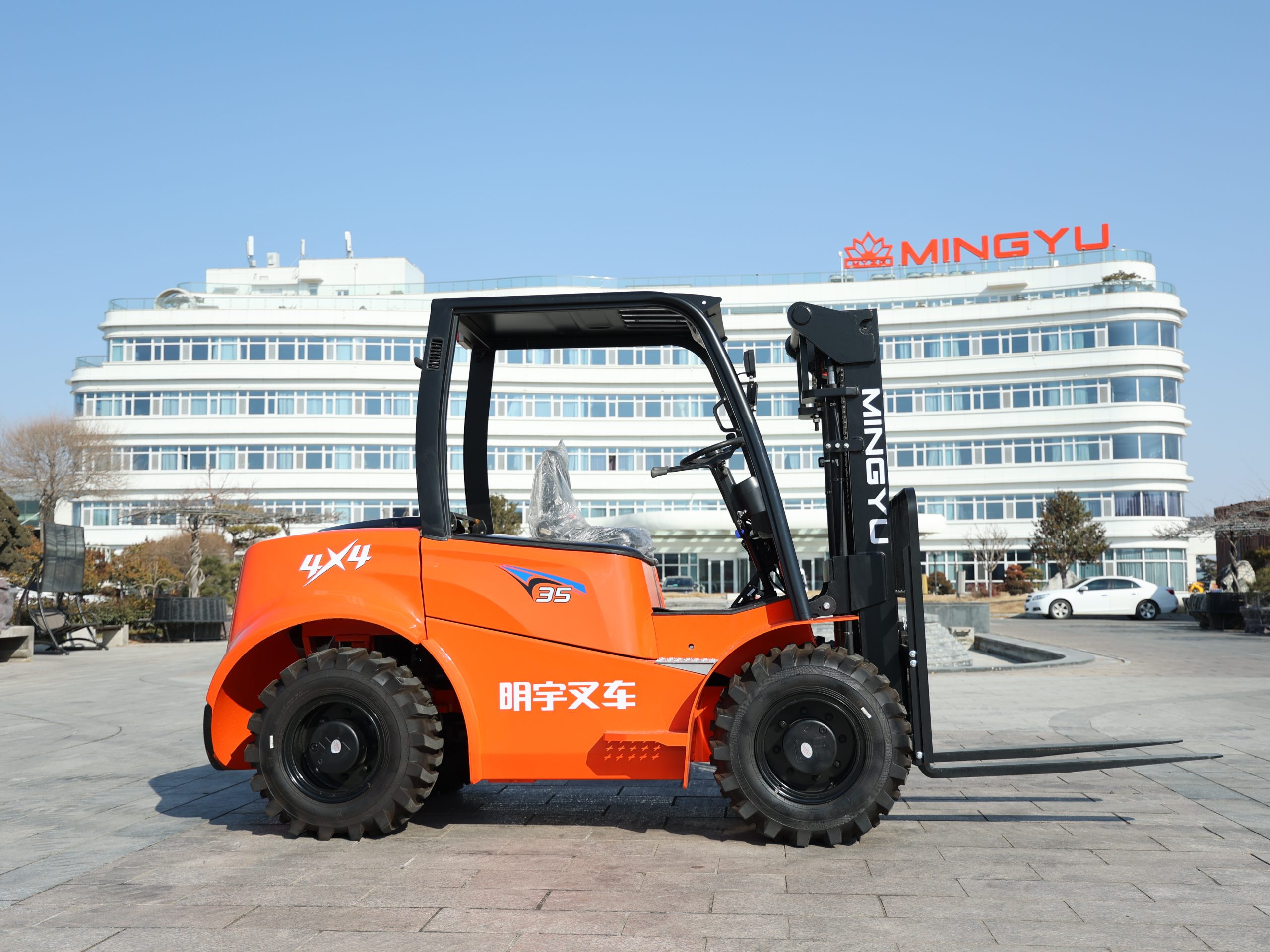

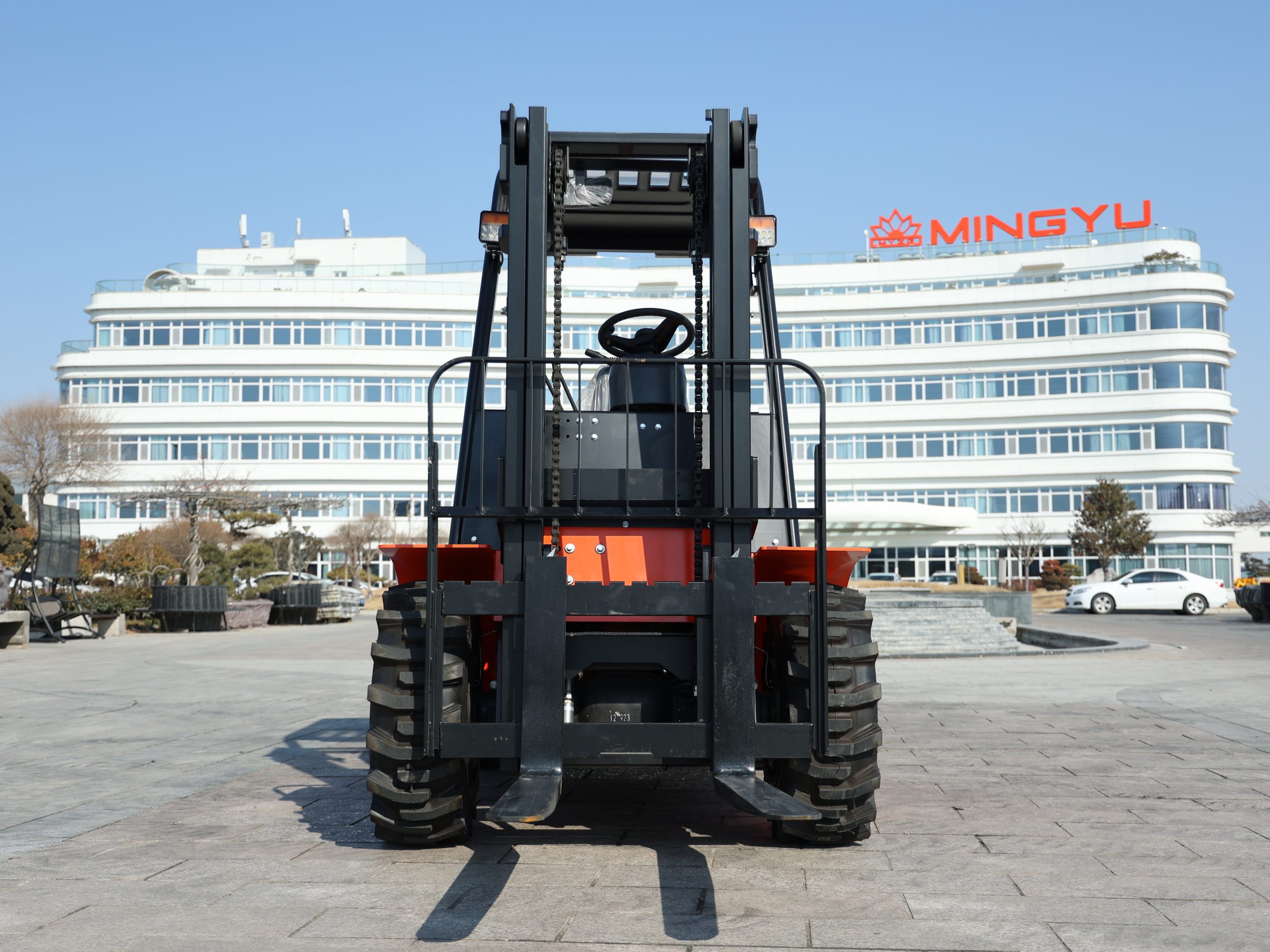

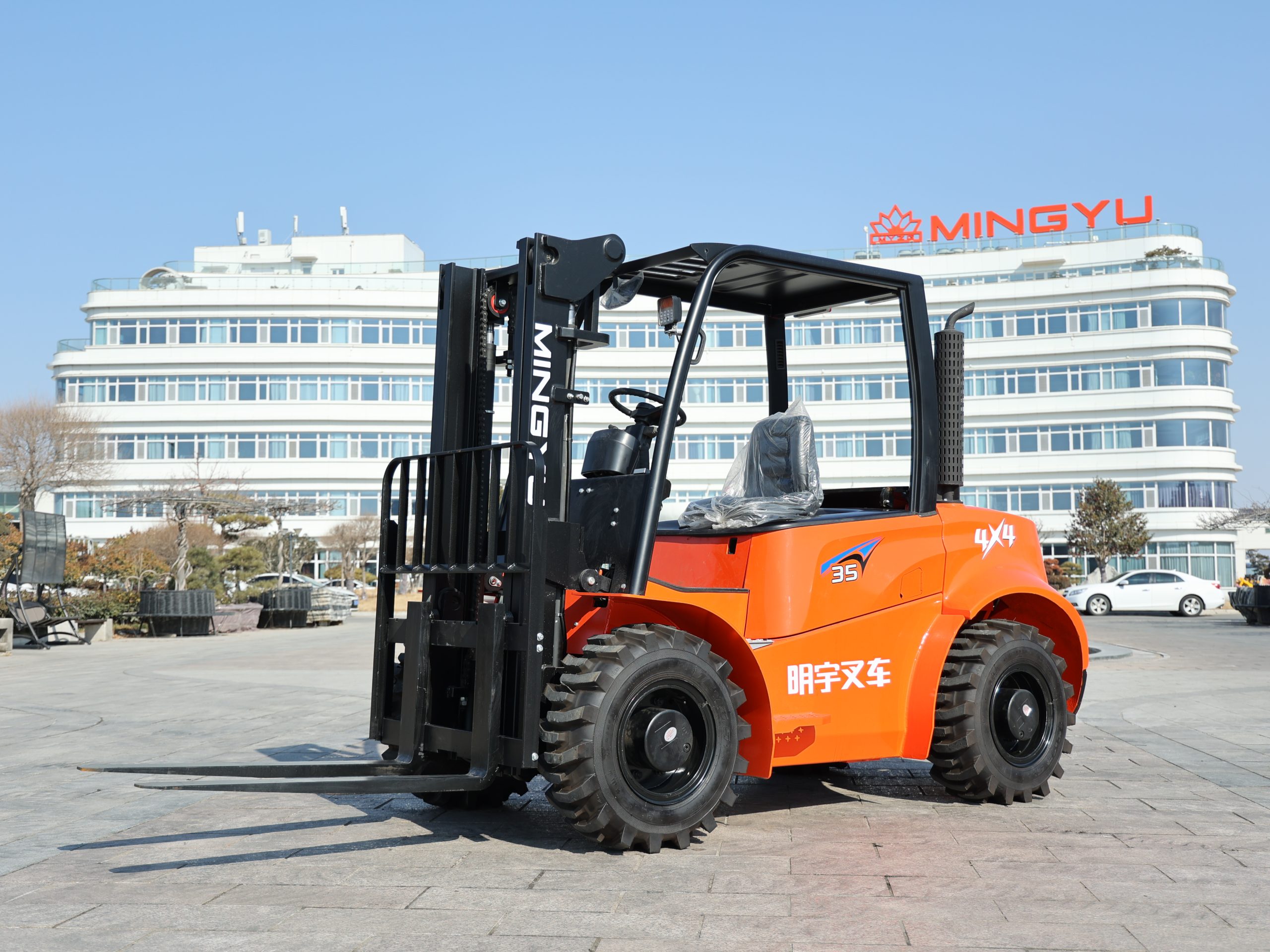

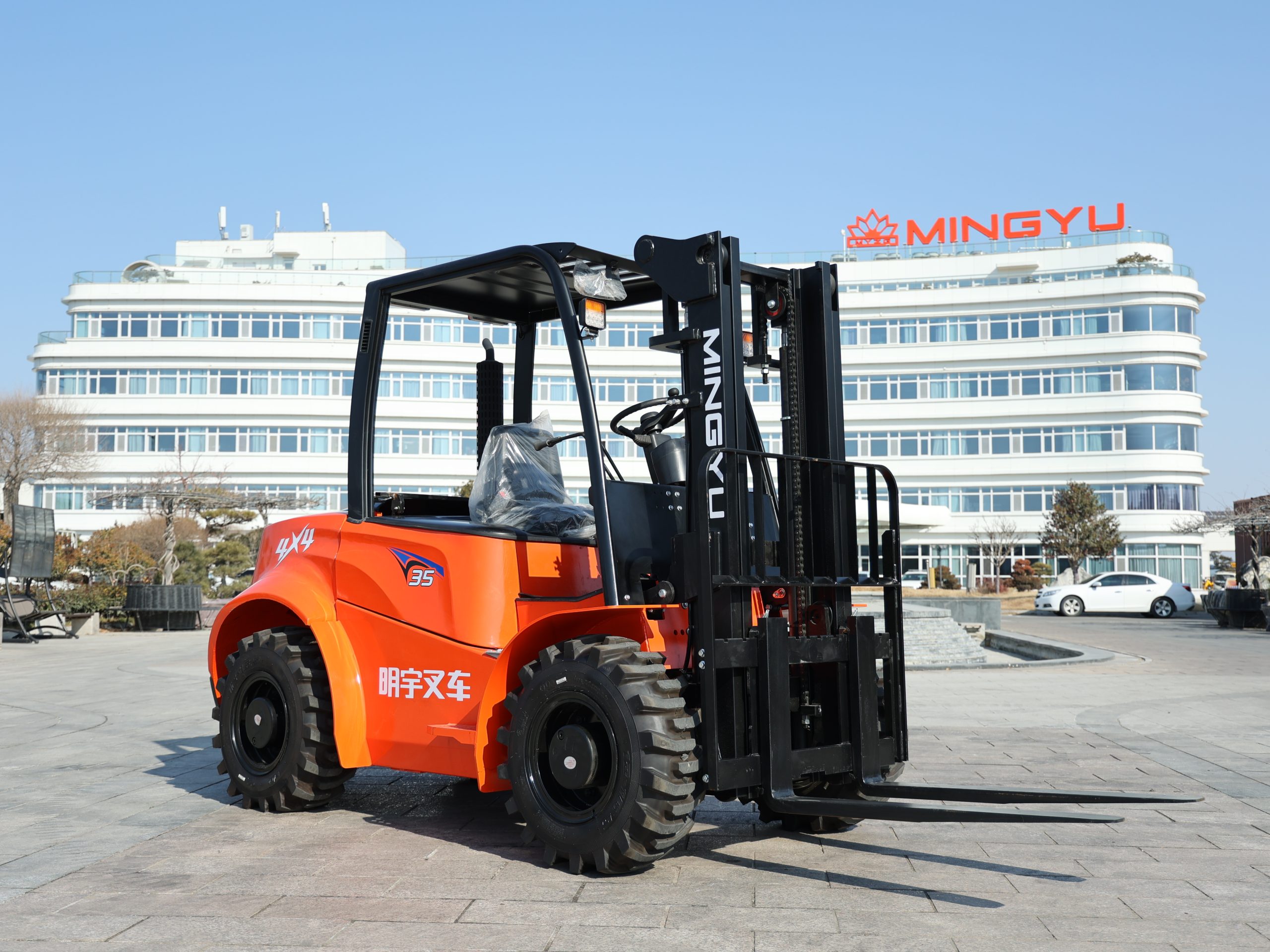

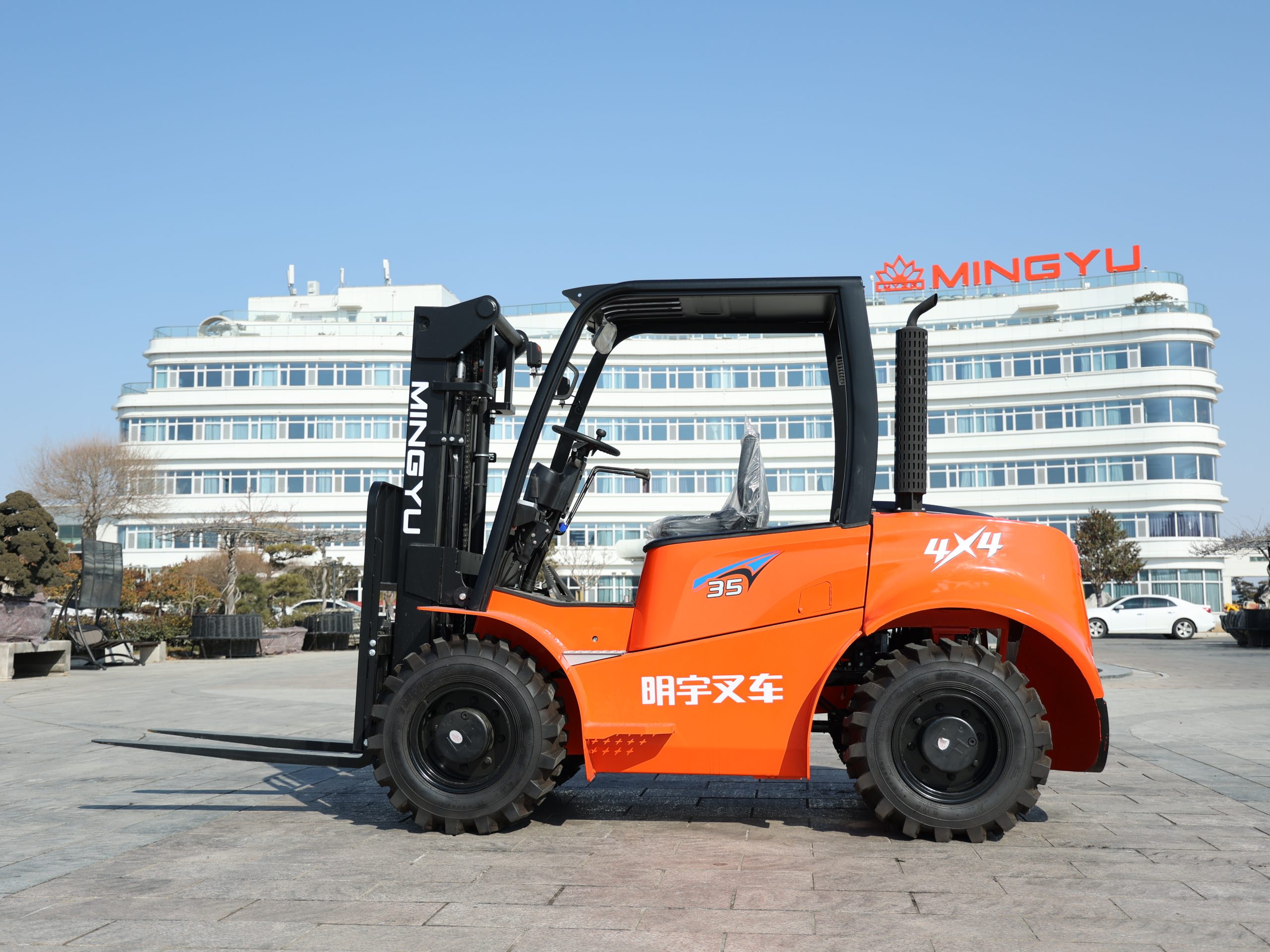

GALLERY
