Forklift Diesel
Explore our comprehensive range of forklifts and wheel loaders. Each machine is engineered for performance, durability, and efficiency.
Forklift Diesel
M35
Kapasitas Angkat (Kg)
3500
Jarak Pusat Beban (mm)
500
Power
Diesel
Applicable work conditions
Warehouse
Warehouse
FEATURE
Forklift Diesel M35 menghadirkan kombinasi kekuatan, ketahanan, dan efisiensi untuk mendukung aktivitas operasional yang intensif.
Unit ini mampu menangani berbagai kebutuhan pengangkatan dengan performa yang konsisten dan produktif.
SPESIFIKASI
| Power: Diesel | Lift Height: 3000mm |
|---|---|
| Rated lifting capacity: 3500kg | Fork adjustment range: 260-1100mm |
| Load center distance: 500mm | Gantry inclination angle: 6°/12° |
| Operation mode: SIT-ON TYPE | Max. lifting speed (no load): 480mm/s |
| Length (With fork): 3861mm | Max. lifting speed (full load): 370mm/s |
| Length (Without fork): 2786mm | Max. operating speed (no load): 20km/h |
| Width: 1225mm | Max. operating speed (full load): 20km/h |
| Height of non-lifting gantry: 2240mm | Max. gradeability (full load): 20% |
| Height of roof guard: 2110mm | Overall weight: 4340kg |
| Max. height during operation: 4262mm | Number of wheels: 2/2 |
| Wheelbase: 1810mm | Type: Inflation |
| Front overhang: 441mm | Front Tyre size: 28*9-15 |
| Rear overhang: 670mm | Rear Tyre size: 6.5-10 |
| Front track width: 1000mm | Service Brakes: foot brake |
| Rear track width: 980mm | Parking Brakes: hand brake |
| Ground clearance: 165mm | Engine Power: 36.8kW |
| Minimum turning radius: 2580mm | Speed: 2500r/min |

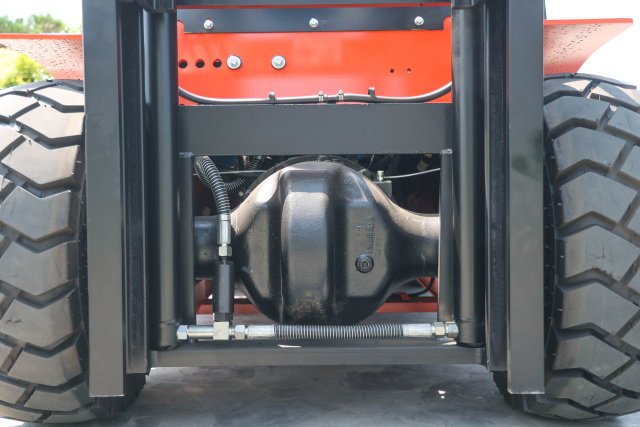

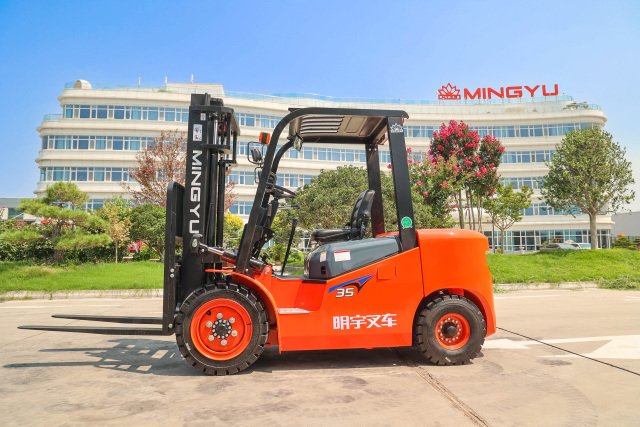

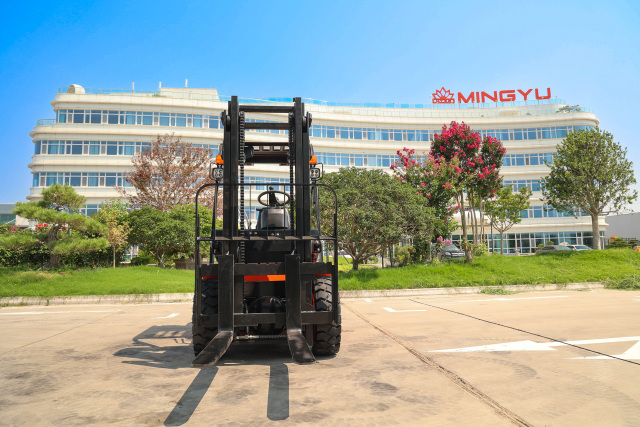

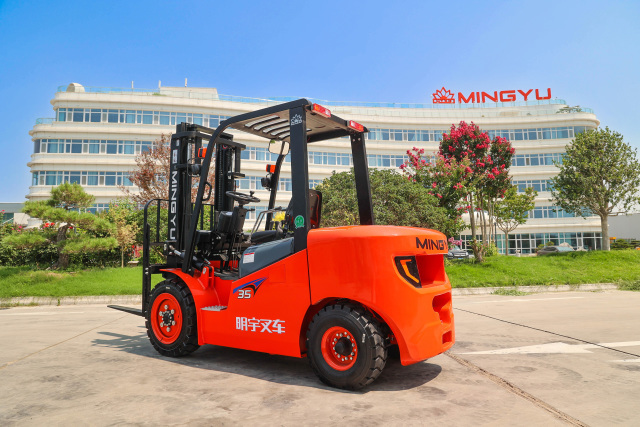

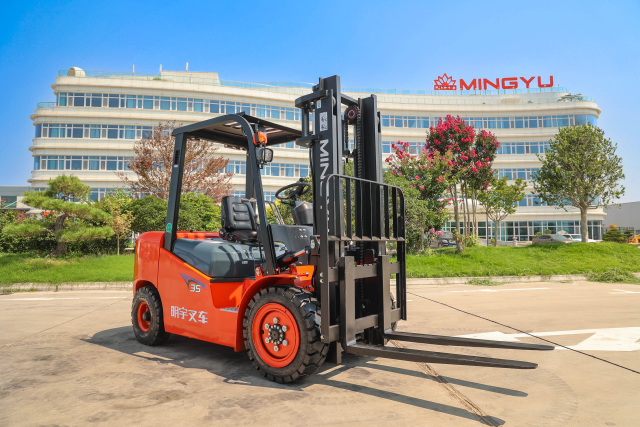

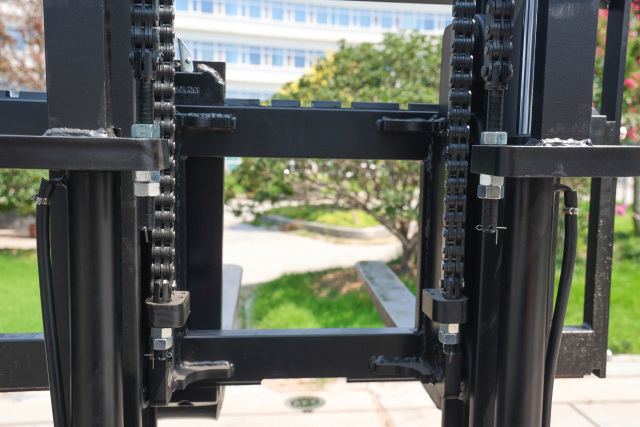

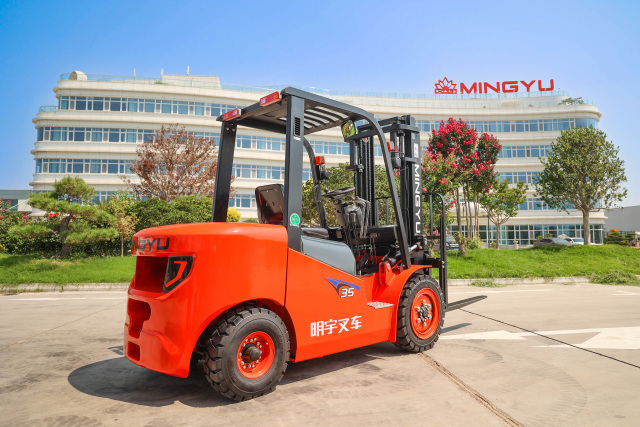

GALLERY
