Electric Reach Forklift (Stand Type)
Explore our comprehensive range of forklifts and wheel loaders. Each machine is engineered for performance, durability, and efficiency.
Electric Reach Forklift (Stand Type)
CQD30
Kapasitas Angkut (Kg)
3000
Jarak pusat beban
500
Daya
Baterai lithium
Applicable work conditions
Warehouse
Warehouse
FEATURE

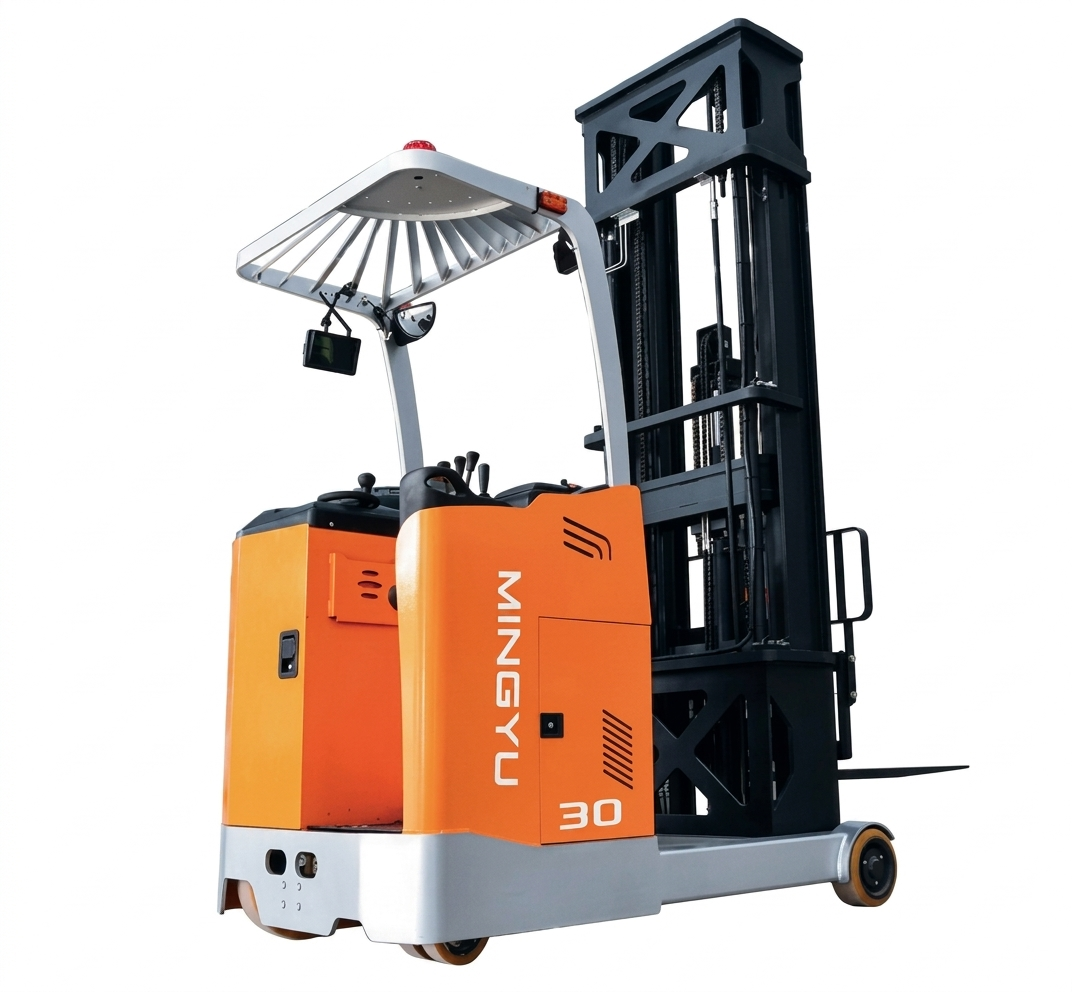

Mingyu Electric Reach Forklift CQD30
Menghadirkan performa tinggi untuk operasional pergudangan dan logistik yang membutuhkan kapasitas angkat lebih besar.
Didukung teknologi listrik yang hemat energi, kemampuan angkat
hingga 3 ton, serta desain yang memudahkan manuver di ruang terbatas, CQD30 menjadi solusi ideal untuk meningkatkan efisiensi, keselamatan, dan produktivitas kerja.
SPESIFIKASI
| Model No.: CQD30-50S | Fork tilting angle Front/Rear: 3/5° |
|---|---|
| Power type: Electric | Lifting speed (unload): 326 mm/s |
| Load capacity: 3000 kg | Lifting speed (load): 170 mm/s |
| Load center: 500 mm | Max. travel speed (unload): 8 km/h |
| Operation type: Stand Type | Max. travel speed (load): 7 km/h |
| Overall length (with fork): 2640 mm | Max. gradeability: ≤8% |
| Overall length (without fork): 2150 mm | Total weight with battery: 4200 kg |
| Overall width: 1460 mm | Wheel type: Polyurethane PU |
| Fork face min. ground clearance: 2655 mm | Front wheel: 280*135 |
| Free lift height: 1600 mm | Drive wheel: 382*142 |
| Lift height: 5000 mm | Balance wheel: 180*76 |
| Max. height when lifting: 5995 mm | Wheel tread, front wheel: 1330 mm |
| Height of overhead guards: 2260 mm | Brake type: EMB |
| Wheelbase: 1770 mm | Driving motor: 8 kW |
| Reach distance: 610 mm | Lifting motor: 12 kW |
| Min. ground clearance: 80 mm | Battery capacity: 48V / 280Ah |
| Min. turning radius: 2200 mm | Charger: 48V / 100A |
GALLERY
